IP67 /IP68 Waterproof D-SUB 9 Pin Male Female RS232 Connector Shielded Cable Wire Harness
Product Details
• All materials conform to RoHS, REACH without any harmful substance comprising strickly checked QC
• 100% testing for open circuit and short circuit and 100% smooth operation before shipping
• Insulation resistance: 10M OHM
• Hi-pot: DC 300V 10ms
Generally Description:
Wire gauge (AWG): 22AWG or 24AWG
Wire gauge (mm2): 0.34mm2 or 0.25mm2
Wire insulation: PVC
Cable jacket: PVC/PUR
Operation temperature: -20°C ~ +80°C or -40°C ~ +105°C
Material:
Connector Body: PA66+GF
Contacts: Phosphorus copper with gold plated
Screw/Nut: Brass with nickel plated
Waterproof 0-ring: FKM
Electrical data:
Rated voltag: 300V
Rated current: 5A
Contact resistance: ≤10mΩ
Insulation resistance: ≥1000MΩ

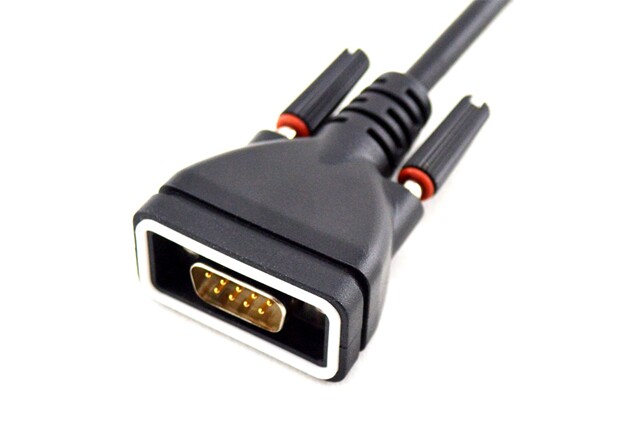

IP67 /IP68 Waterproof D-SUB 9 Pin Male Female RS232 Connector Shielded Cable Wire Harness

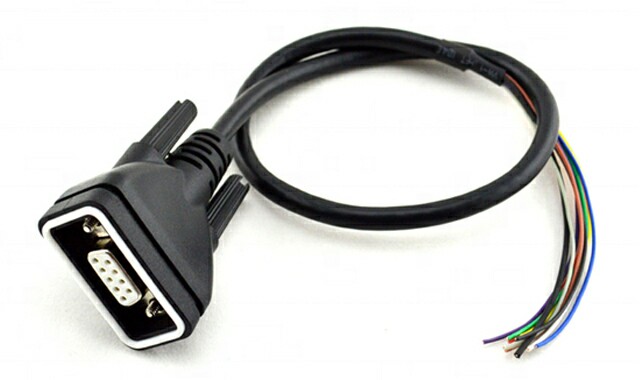

IP67 /IP68 Waterproof D-SUB 9 Pin Male Female RS232 Connector Shielded Cable Wire Harness

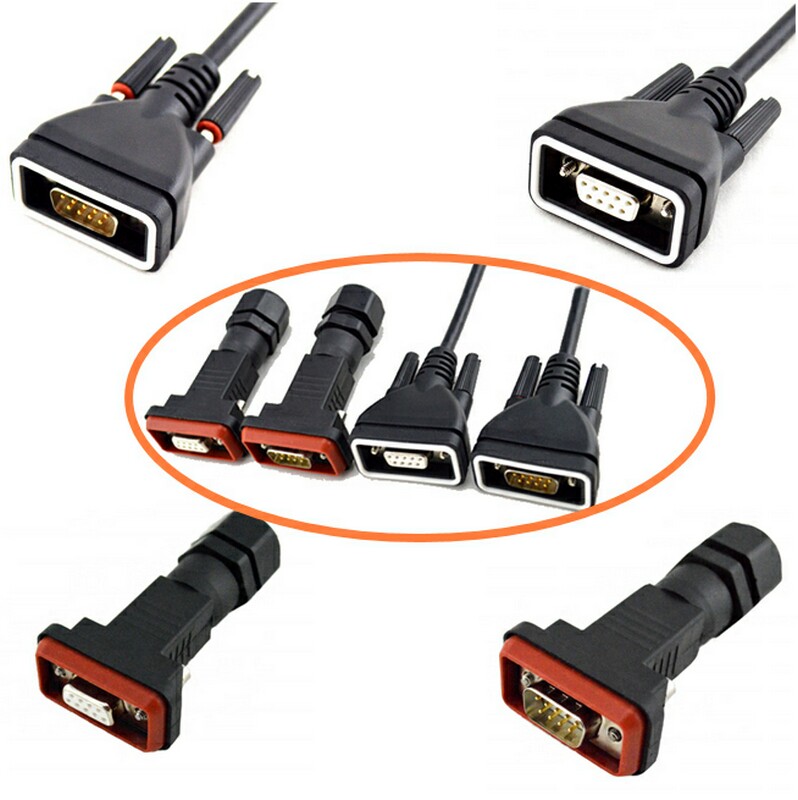

IP67 /IP68 Waterproof D-SUB 9 Pin Male Female RS232 Connector Shielded Cable Wire Harness

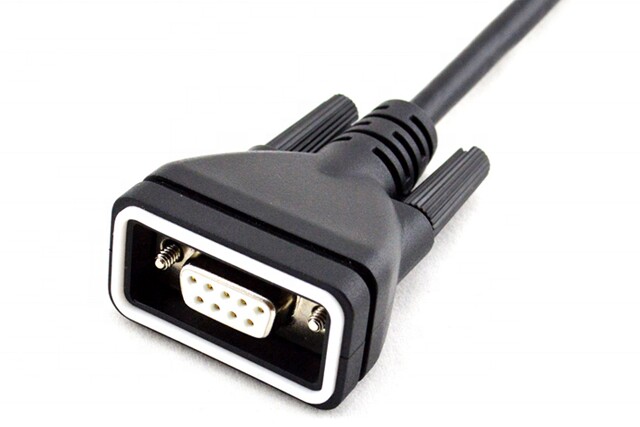

IP67 /IP68 Waterproof D-SUB 9 Pin Male Female RS232 Connector Shielded Cable Wire Harness
