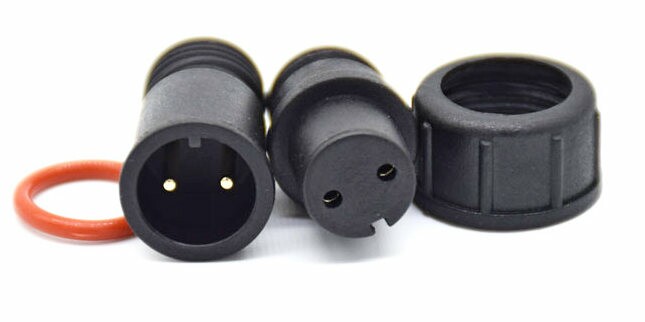

Custom M16 Waterproof Connector Cable Assembly Moulded 2 Pin IP67 Wire Connector Harness

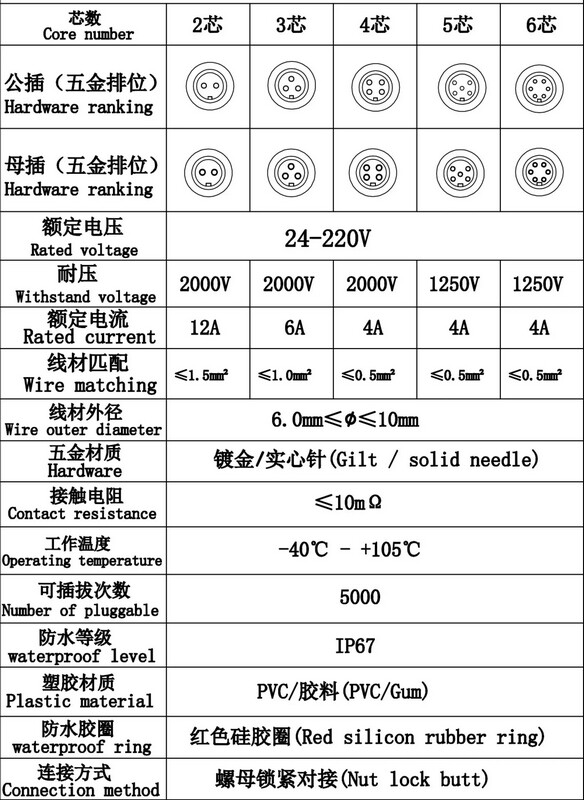

Product parameters:
| Number of contact | 2~8PIN |
| Contact diameter | Φ1.5mm |
| Current rated | 10A~5A |
| Voltage rated | 300V~60v |
| Protect level | IP67 |
| Diameter ranger | Φ3.5mm ~ Φ7.5mm |
| Operating temperature | -45℃ ~105℃ |
| Cables specification |
2-4pin 0.5mm2~1.0mm2 (20AWG~16AWG) 5pin-2+4pin 0.75mm2~0.5mm2 (18AWG+20AWG) 6-7pin 0.2mm2~0.5mm2 (20AWG~24AWG) |
| Connector type | Self-lock Assembly type |

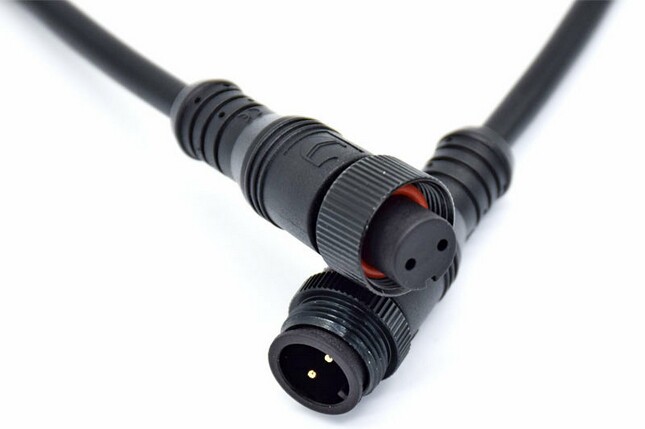

Custom M16 Waterproof Connector Cable Assembly Moulded 2 Pin IP67 Wire Connector Harness
Product Features:
1. Using Self-lock Assembly type.
2. Colors are optional to be used in the different environment.
3. A high-performance cover is optional to be used in the different environment.
4. 2~8PIN.
5. Rated current: 5A~10A.
6. Waterproof level: IP67
7. Any length of the cable is available and terminal processing.
8. Your drawings and samples are warmly welcomed since our professional R&D team can help to customize the items you want
9. Certification: ISO9001, CE, UL, ROHS, CCC, TUV.
10.Application range: wall washing lighting, electrical equipment, automation machines, electrical vehicle and etc...
