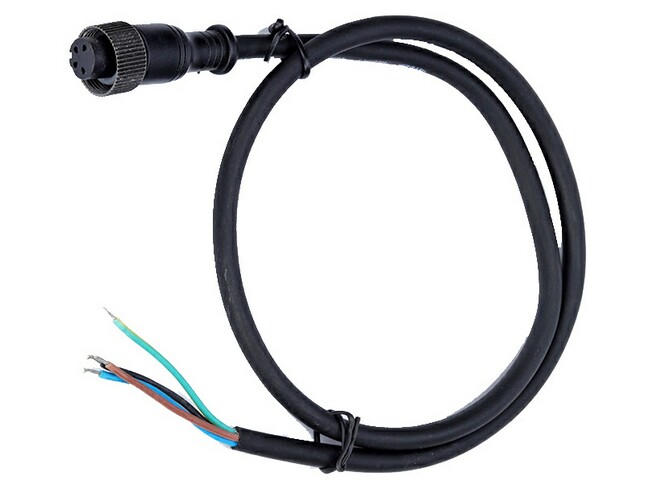

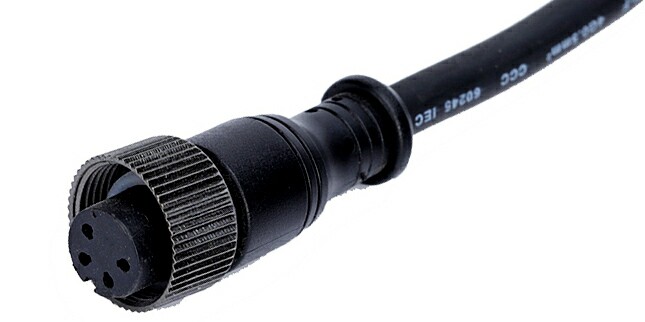

M12 IP68 Waterproof Connector Cable Harness Custom 4 Pin Male Connector Wire Harness
Product Details
Characteristics of M12 Series
| General Characteristics | ||||||
| Number of contact | 3 | 4 | 5 | 8 | 12 | 17 |
| Locking system | screw M12*1.0 | |||||
| Termination | solder, moulded on cable, crimp or screw clamp | |||||
| Wire guage in mm2 | 0.14/0.25/0.34/0.5 etc | |||||
| Wire guage in AWG | 26/24/22/20 etc | |||||
| Shell protection | IP67/IP68 | |||||
| Mechanical operation | >500 mating cycles | |||||
| Upper temperature | +85℃ | |||||
| Lower temperature | -25℃ | |||||
| Electrical Characteristics | ||||||
| Rated voltage | 250V | 60V | 30V | |||
| Pollution degree | III | |||||
| Test voltage | 500V±15V | |||||
| Rated current(40℃) | 4A | 2A | 1.5A | |||
| Contact resistance | ≤10mΩ | |||||
| insulation resistance | ≥100MΩ | |||||
| Materials | ||||||
| Pin contact | CuZn | |||||
| Socket contact | CuSn | |||||
| Contact plating | Au | |||||
| Upper temperature | PA66(UL 94V-0) | |||||
| Female insent | PA66(UL 94V-0) | |||||
| Material of cable jacket | PVC or PUR | |||||
| Screw | CuZn | |||||
| Nut | CuZn | |||||
Main Usage: LED Light, Vehicle CCTV Camera, Industrial IO-Link Gateway, Factory Automation, Inclinometer Sensor
OEM & ODM: Acceptable
Standard:IEC 61076-2-104-2008
Samples: Offer
Certificate: ISO9001:2008, RoHS/Reach, Phthalate-free Plasticizers

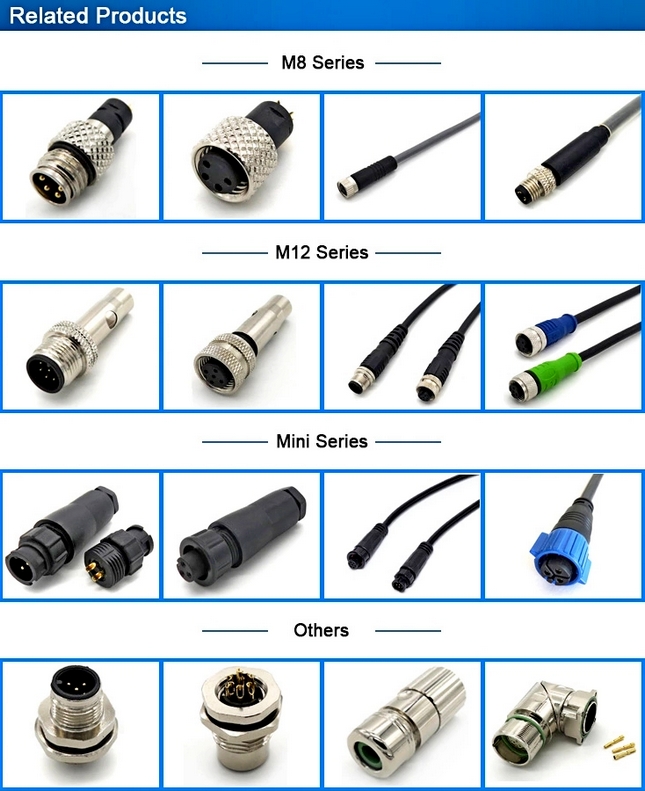

Related Product: M4 Series, M8 Series, M16 Series, Mini Series, M23 Series Circular Connectors Etc And Various Kind Of Custom Wiring Harnesses.
