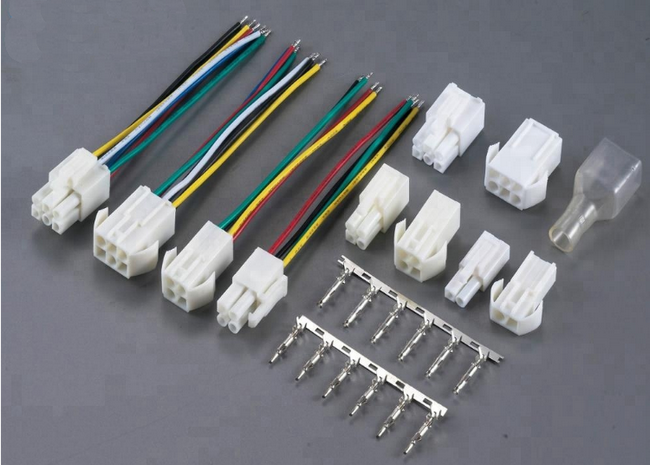

Custom JST EL 4.5mm pitch 4pin Male to Female Wire Harness Assembly
| Product Name | EL 4Pin male to female connector wire harness for automotive electronic home appliance |
| Standard | IPC/WHMA-A-620B |
| Wire Standard | UL1007,UL1015 or Customize |
| Connector | Molex, JST, Hirose, AMP… Can be Original or Equivalent |
| Quality | 100% Electrical Tests Before Shipping |
| Service | OEM and ODM products are acceptable |
| Drawing | Release Professional Drawing before Sample |
| Sample | Provide Free Samples in 1-2 weeks |
| Freight Cost | Very Low Freight Cost for Express, Sea and Air Freight |
| Certificates | RoHS,CE,UL,TUV,ISO |
| Company Advantage | 1.Factory and trade integration,10 years export experience; |
| 2.high quality products | |
| 3.Competitive price; | |
| 5.Timely delivery; | |
| 6.Technical support; | |
| 7.Samples for free; | |
| 9.Good sale and after-sale service | |
| 10. Low MOQ |
|
EL connector Specifications |
|
|
Pitch |
4.5mm |
|
Poles |
2~14 |
|
Applicable wire |
AWG#26~#16 |
|
Rated voltage |
300V AC,DC |
|
Rated current |
6.0A~10.0A |
|
Withstand voltage |
1500V AC/minute |
|
Working temperature |
-25℃~+85℃ |
|
Insulation resistance |
≥1500MΩ |
|
Contact resistance |
≤0.015Ω |
|
Applicable PC board thickness |
1.6mm |
|
Material |
|
|
Housing |
Nylon 66 UL94V-0 |
|
Pin header |
|
|
Wafer |
Nylon 66 UL94V-0 |
|
Pin |
Tin plated copper |
|
Terminal |
Phosphor Bronze |
|
Wire |
|
|
Length of wire |
As per customer's request |
|
Color of wire |
Red, white, black, pink, brown, gray, blue, purple, green ect. |
Please feel free to contact us if you need any help: info@unitechindustry.com, we will reply you in 8 hours.
