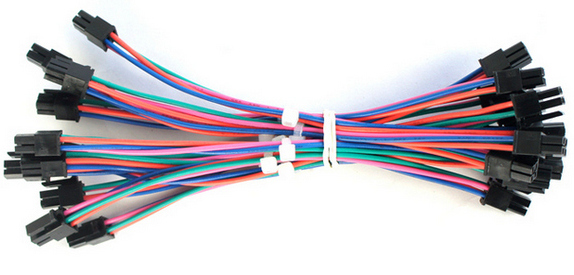

Molex Mini-Fit 3.0 43025 4pin Connector Custom Cable Assemblies
All Wire Harnesses will be custom made as your drawing and specifications.
Sample Prototype, Trial Order will be welcome
| Product Name | custom wire harness molex 43025 cable connector |
| Type | Custom Wire harness/OEM |
| Connector Type | Connector type From TE,MOLEX, or equivalent ; |
| MOQ | Small order can be accepted,Even Trial Order less than 100EA |
| Sample | Sample confirm first before mass production; |
| Delivery Time | Strong production capacity ensure delivery time. |
| Payment Term | T/T and Western Unionl etc. |
Connector Details
Replacement: molex 43025 connector
Pitch: 3.0mm
Poles: 2-20P
Category:Crimp Housings
Flammability: 94V-0
Voltage Rating: 250V AC/DC
Current Rating: 5A max
Temperature Range: -30℃ to +105℃
Contact Resistance: ≤ 15mΩ
Insultaion Resistance: ≥1000mΩ
Withstand Voltage: 1000V AC/minute
Application: Power, Wire-to-Board, Wire-to-Wire
Tips:
1)This is molex replacement 3.0mm pitch connector
2)The series available male plug(43025),female receptacle(43020),pcb wafer(43045), terminals (43030/43031). It's wire to wire,wire to pcb series!
3)Available 2-24pin
